Description

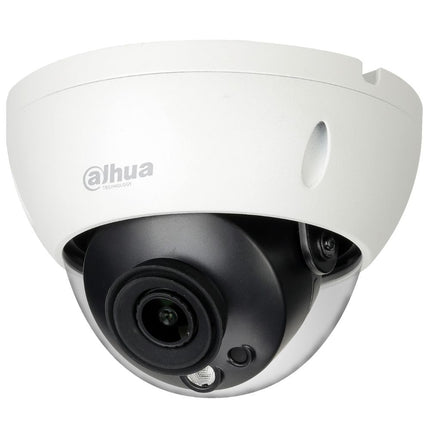

Dahua IPC-HDBW5541R-ASE Security Camera
WizMind Series - Designed for project-oriented products. Equipped with a deep learning algorithm allowing advanced AI face recognition with attribute filtering by gender, age, glasses, mask, beards and emotional expressions such as anger. (compatible with AI Series NVR’s) It provides advanced AI for people counting, privacy protection, heat mapping, ultra long-distance monitoring, thermal imaging and smart tracking for compatible cameras supporting the feature.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Records up to 5 Megapixel resolution.
- Equipped with a 2.8mm Fixed lens.
- Supports up to 2592 × 1944 pixels resolution.
- Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection, loitering detection, people gathering and parking detection.
- Supports AI People Counting useful for business analytics. Count the number of people in an area, queue management and alarm linkage.
- Supports AI Face Detection that supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
-
Starlight technology generates clear colour images in near-complete darkness.
- 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
- Built-in Infrared LED, with a maximum range of 50 meters.
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- Durable "Vandal-Proof" Impact Protection Rating (IK10).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HDBW5541R-ASE Security Camera
Camera |
Image Sensor |
1/2.7” 5Megapixel progressive scan CMOS |
Max. Resolution |
2592 (H) × 1944 (V) |
RAM/ROM |
512 MB/128 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
S/N Ratio |
56 dB |
Minimum Illumination |
0.005 Lux@F1.6 |
Illumination Distance |
Distance up to 50 m (164 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
1(IR LED) |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
Board-in |
Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
Max. Aperture |
F1.6 |
Angle of View |
H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37° |
Aperture Type |
Fixed |
Close Focus Distance |
0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft) |
Pan/Tilt/Rotation |
Pan/Tilt/Rotation Range |
Pan: 0?–355?; Tilt: 0?–75?; Rotation: 0?–355? |
Artificial Intelligence |
Face Detection |
Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
Perimeter Protection |
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
|
People Counting |
Support the counting of enter number, leave
number, and pass number, and displaying and
outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time
and link alarm.
Support queue management, and 4 rules
configuration. Count number of people or stay time
and link alarm
|
General Intelligence |
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
General Intelligence |
Object Abandoned/Missing |
Heat Map |
Yes |
Video |
Compression |
H.265, H.264, H.264B, H.264H,
MJPEG (only supported by sub stream)
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
Streaming Capability |
3 Streams |
Resolution |
2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
Frame Rate |
Main Stream: 2592 × 1944 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
|
Sub Stream: D1 (1 fps–20/30 fps)
D1 (1 fps–50 fps)
|
Third Stream: 1080P (1 fps–17 fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192Kbps
|
Day/Night |
Auto (ICR)/Color/B/W |
BLC Mode |
BLC/HLC/WDR (120 dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
Off/On (4 Zone, Rectangle) |
Region of Interest |
Off/On (4 Zone) |
Smart Illumination |
Yes |
Defog |
Yes |
Flip |
0°/90°/180°/270° |
Mirror |
Off/On |
Privacy Masking |
Off/On (4 Area, Rectangle) |
Alarm |
Alarm Event |
No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
User/Host |
20 Users |
Storage |
NAS;FTP;SFTP;Dahua Cloud
Micro SD card 256 GB
|
Browser |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
Management Software |
Smart PSS, DSS, DMSS |
Mobile Phone |
iOS, Android |
Certifications |
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
Interface |
Audio Interface |
1/1 channel In/Out |
Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
Electrical |
Power Supply |
DC 12V (±30%), PoE (802.3af) |
Power Consumption |
<6W |
Environmental |
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/Less than 95% RH |
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
Protection Grade |
IP67, IK10 |
Construction |
Casing |
Metal |
Dimensions |
?122.0 mm × 88.9 mm (4.80” × 3.50”) |
Net Weight |
0.46 kg (1.01 lb) |
Gross Weight |
0.62 kg (1.37 lb) |
