Description

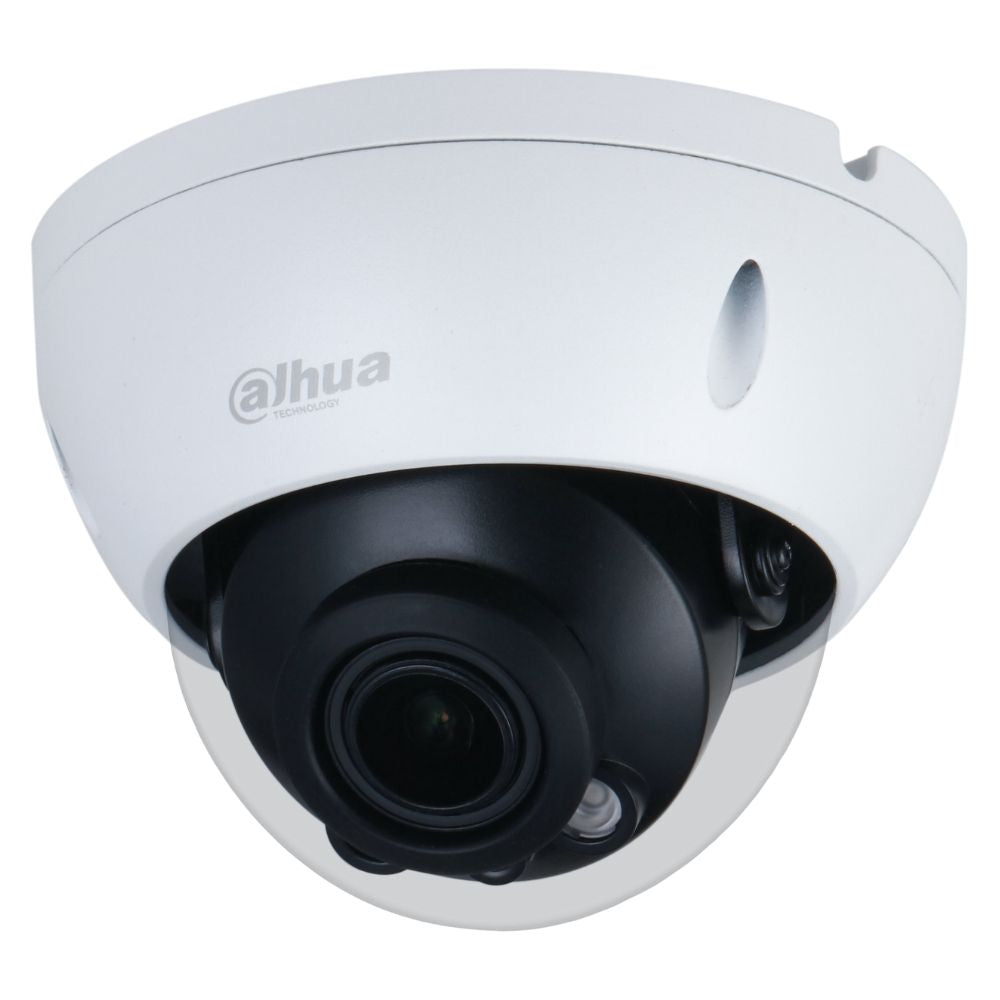

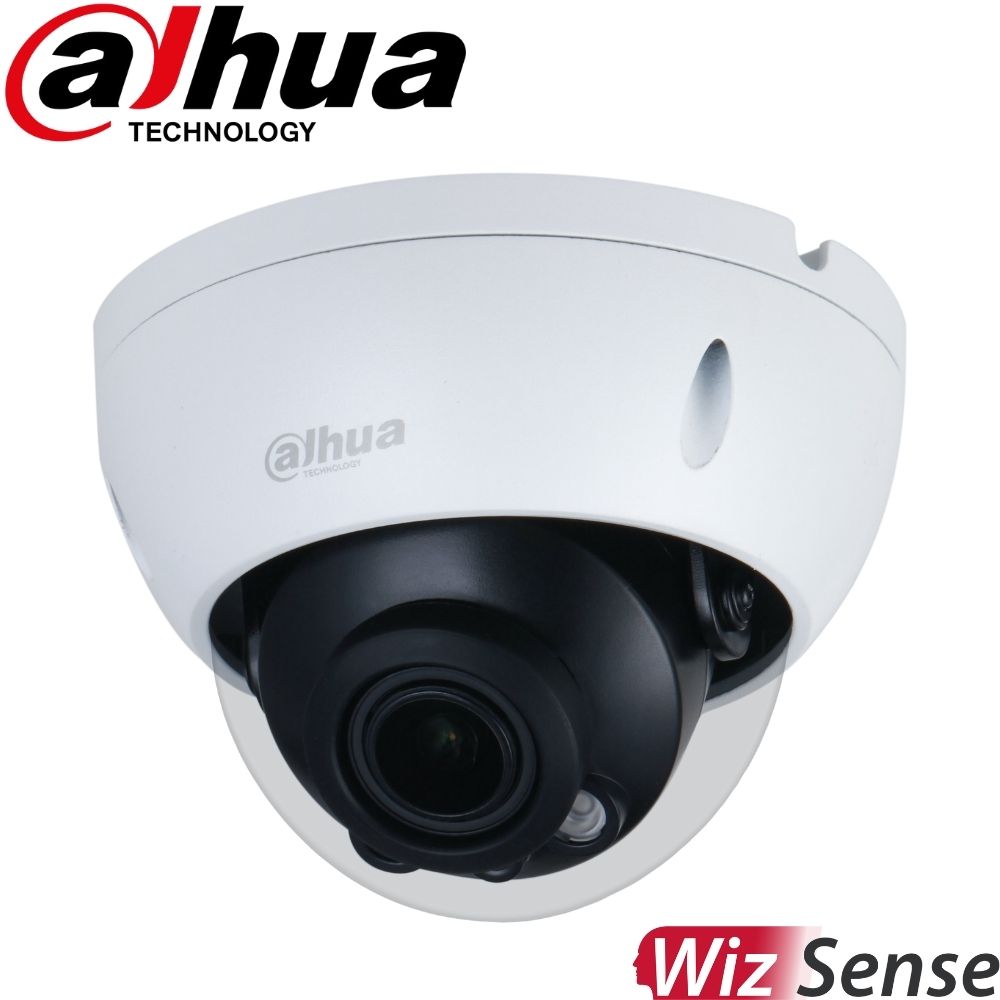

Dahua IPC-HDBW3541R-ZS Security Camera
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Records up to 5 Megapixel resolution.
- Equipped with a 2.7~13.5mm Motorized lens.
- Supports up to 2592 × 1944 pixels resolution.
-
Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
-
Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
- Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection, loitering detection, people gathering and parking detection.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
-
Starlight technology generates clear colour images in near-complete darkness.
- 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
- Built-in Infrared LED, with a maximum range of 40 meters.
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- Durable "Vandal-Proof" Impact Protection Rating (IK10).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HDBW3541R-ZS Security Camera
Camera |
Image Sensor |
1/2.7”5Megapixel progressive CMOS |
Max. Resolution |
2592 (H) ×1944 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
Min. Illumination |
0.005 Lux@F1.5 (Color, 30IRE)
0.0005 Lux@F1.5 (B/W, 30IRE)
0 Lux (Illuminator on)
|
S/N Ratio |
56 dB |
Illumination Distance |
40 m (131.23 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–355°; Tilt: 0°–75°;Rotation: 0°–355° |
Lens |
Lens Type |
Motorized vari-focal |
Mount Type |
?14 |
Focal Length |
2.7 mm–13.5 mm |
Max. Aperture |
F1.5 |
Field of View |
Horizontal: 99°–26° Vertical: 72° –20° Diagonal: 133° –33° |
Iris Type |
Fixed |
Close Focus Distance |
0.8 m (2.6 ft) |
Professional, Intelligent |
Perimeter Protection |
Tripwire; intrusion (Recognition of human and vehicle) |
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG(only supported
by sub stream)
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
Video Frame Rate |
Main stream (2592 × 1944@1–20 fps)
(2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
|
Stream Capability |
3 streams |
Resolution |
5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity change; tripwire; intrusion; SMD |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Interoperability |
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
Genetec
|
Scene Self-adaptation (SSA) |
Yes |
User/Host |
20 (Total bandwidth: 64 M) |
Storage |
FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
Browser |
IE: IE8, IE9, IE11
Chrome
Firefox
|
Management Software |
Smart PSS, DSS, DMSS |
Mobile Phone |
IOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Power |
Power Supply |
12V DC/PoE (802.3af) |
Power Consumption |
<8.5W |
Environment |
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than 95% |
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
Protection Grade |
IP67; IK10 |
Structure |
Casing |
Metal |
Dimensions |
?122 mm × 88.9 mm (?4.8" × 3.5") |
Net Weight |
492 g (1.1 lb) |
Gross Weight |
663 g (1.5 lb) |
