System |
Main Processor |
Industrial embedded micro-processor |
Operating System |
Embedded Linux |
Operation Interface |
Web; local GUI |
Perimeter Protection by Camera |
Performance |
16/20/20 channels |
AI Search |
Search for pictures by channel, time and event type |
Face Recognition by Camera |
Performance |
14 channels |
Face Attributes |
6 attributes: Gender; age; glasses; expression; mouth mask; beard |
AI Search |
Search for pictures by channel, time and face attributes |
SMD Plus by Camera |
Performance |
16/32/64 channels |
AI Search |
Search by target classification (human, vehicle) |
Video Metadata by Camera |
Performance |
16 channels |
Human Body |
Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella |
Vehicle |
Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region |
Non-motor Vehicle |
Type; color; number of passengers; helmet |
AI Search |
Supports searching for target video by metadata |
ANPR by Camera |
Performance |
4 channels |
Stereo Analysis by Camera |
Performance |
16 channels |
AI Search |
Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection) |
Video |
Access Channel |
16/32/64 |
Network Bandwidth |
320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding |
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
Decoding Capability |
16-channel@1080P (30 fps) |
Video Output |
HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720
HDMI2/VGA2: 1920 × 1080
VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous output |
Multi-screen Display |
1st Screen: 16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36
64-channel: 1/4/8/9/16/25/36/64 |
2nd screen: 1/4/8/9/16 |
Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
Compression |
Video |
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
Audio |
PCM; G.711A; G.711U; G.726 |
Network |
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P |
Mobile Phone Access |
Android; iOS |
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
Browser |
Chrome; IE9 or later; Firefox |
Record Playback |
Multi-channel Playback |
1/4/9/16 |
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS) |
Storage Method |
Local HDD and network |
Backup |
USB device |
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off |
Storage |
Disk Group |
Yes |
Alarm |
General Alarm |
Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
Anomaly Alarm |
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
Intelligent Alarm |
Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;
heat map
|
Alarm Linkage |
Record; snapshot; IPC external alarm output; buzzer; log; preset; email |

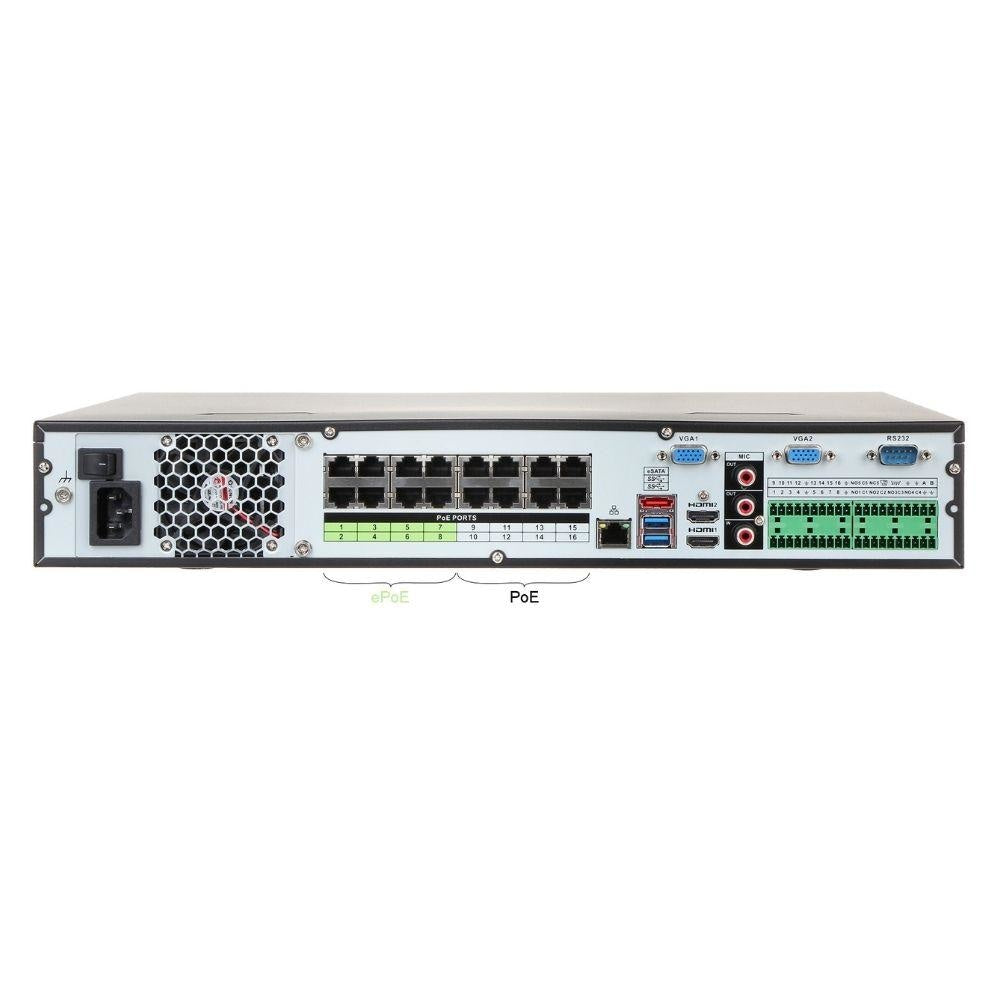

External Port |
Audio Input |
1 channel, RCA connector |
Audio Output |
2 channels, RCA connector, which supports voice intercom output |
HDD |
4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
Alarm Input |
16 channels |
Alarm Output |
6 channels |
eSATA |
1 eSATA |
RS-232 |
1 channel, used to debug and pass through serial data |
RS-485 |
1 channel, used to control PTZ, and it supports multiple protocols |
USB |
1 front USB 2.0 port, 2 rear USB 3.0 ports |
HDMI |
2 |
VGA |
2 |
Network |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
PoE |
16 ports (IEEE802.3af/at)
1-8 ports support ePoE & EoC |
General Parameter |
Power Supply |
Single, 100V–240V AC, 50 Hz–60 Hz |
Power Consumption |
NVR: < 17.5W (without HDD)
PoE: Max 25.5W for single port
150W total rated power, 80% control for protection |
Net Weight |
4.65 kg (10.3 lb) (without HDD) |
Gross Weight |
7 kg (15.4 lb) (without HDD) |
Product Dimensions |
440 mm × 412.2 mm × 76.0 mm (17.3" × 16.2" × 3.0") |
Package Dimensions |
522 mm × 492 mm × 200 mm (20.6" × 19.4" × 7.9") |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Storage Temperature |
0°C to +40°C (+32°F to +104°F) |
Operating Humidity |
10%–93% (RH) |
Storage Humidity |
30%–85% (RH) |
Operating Altitude |
3,000 m (9,843 ft) |
Certifications |
CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1 |
