Description

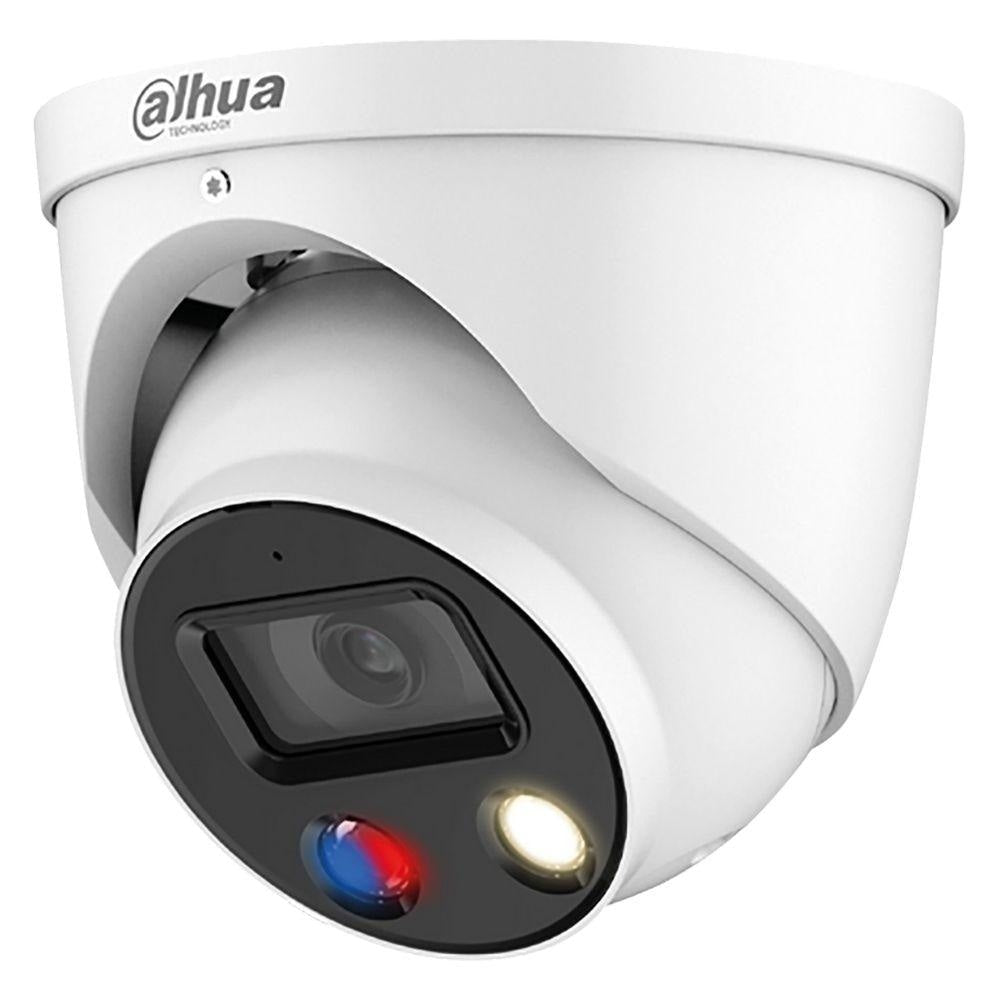

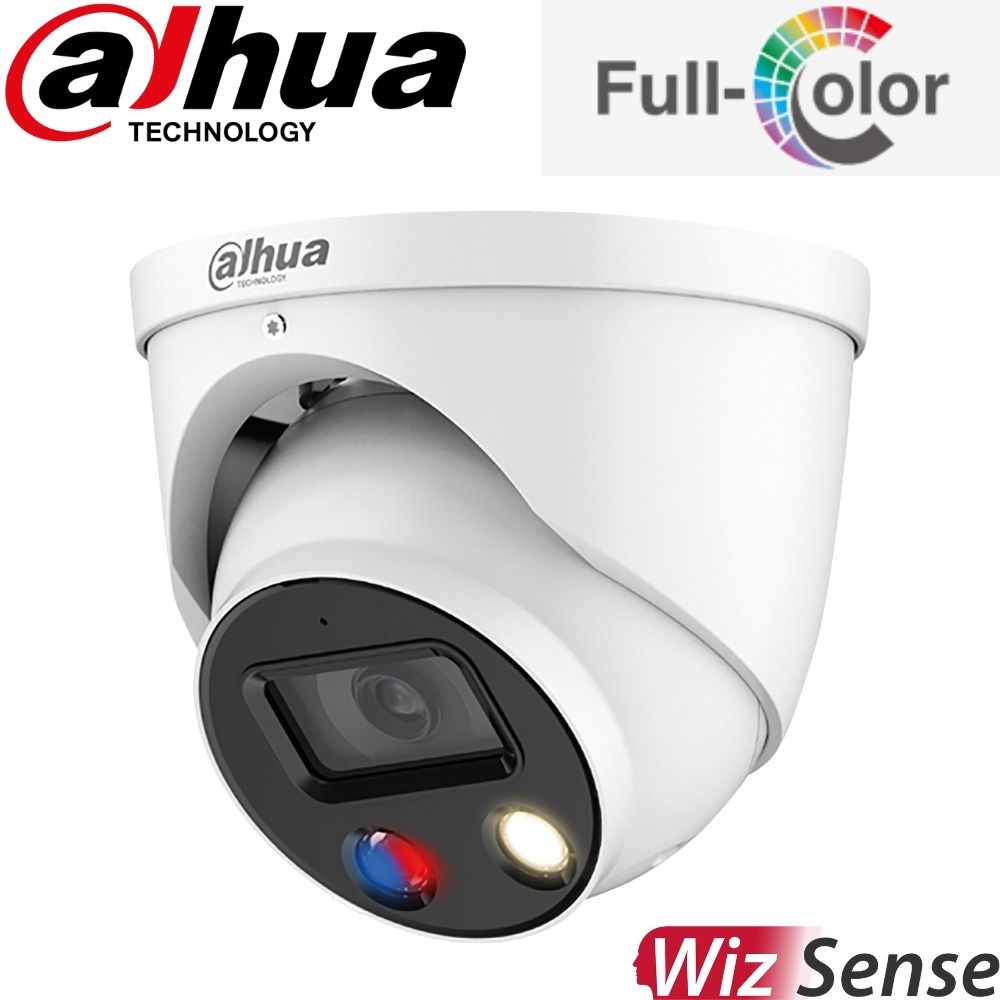

The Dahua DH-IPC-HDW3849H-AS-PV is a 3 in one camera, otherwise known as the TiOC. The 3 standout features being AI Wizsense, an AI chip with a deep learning algorithm, full-colour technology for colour recording at night and active deterrence features utilising a built-in siren, red and blue strobe lights, and a microphone and loudspeaker, also providing 2-way audio. The camera is a powerhouse of features providing a unique and highly effective surveillance solution. Active deterrence can be used to its full potential or disarmed to suit the security requirement.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders protecting life and property.
Full Colour uses a warm LED light that enables the camera to capture 24/7 vivid colour video even in the dark. Significantly increases the probability of collecting valid human, vehicle, and event evidence through brighter monitoring. Also works with AI functions to further enhance the probability and accuracy of target recognition and feature extraction with 98% AI accuracy at night.
Active Deterrence camera actively warns off intruders with built-in flashing lights, siren and audible commands. The lights can be configured to steady or flash. The camera is equipped with pre-recorded audible commands with the option to add your own content.
Features
- Records up to 8 Megapixel (4K Ultra HD) resolution, 3840 × 2160 pixels
- 2.8mm Fixed lens.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming
-
Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
- Triggers real-time alerts to a smart device through the iOS/Android app
- Supports tripwire and intrusion detection IVS Intelligent Video Surveillance
-
Full-Colour Capability: Built-in warm light illuminator with max distance: 30m for colour recording at night
-
Built-in siren and blue/red flashing strobe lights for active deterrence. Triggered by smart detection with real-time alerts to a smart device
- One-tap disarming of active deterrence features
- Built-in mic and loudspeaker for 2 way audio
- Supports pre-recorded audible commands with the option to add your own customised content
- Supports PoE "Power-Over-Ethernet" installation
- Supports MicroSD Card Storage up to 256 Gigabytes
- Resilient "Weather-Proof" Ingress Protection Rating (IP67)
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua DH-IPC-HDW3849H-AS-PV Security Camera: TIOC 8MP Turret, WizSense AI + Starlight
Camera |
Image Sensor |
1/2.8”8Megapixel progressive CMOS |
Max. Resolution |
3840(H) × 2160 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.007 Lux @ F1.4 |
S/N Ratio |
> 56 dB |
Illumination Distance |
30 m (98.4 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
1 (Warm light) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
2.8 mm; 3.6 mm |
Max. Aperture |
F1.4 |
Field of View |
2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
3.6 mm: Horizontal 89° × Vertical 46° × Diagonal 102°
|
Iris Type |
Fixed |
Close Focus Distance |
2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2.2m (7.2 ft)
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
87.7m
(287.7 ft)
|
35.1 m
( 115.2 ft)
|
17.5m
(57.4 ft)
|
8.8m
(28.8 ft)
|
3.6 mm |
110.3m
(361.8 ft)
|
44.1m
(144.7ft)
|
22.1m
(72.5 ft)
|
11m
(36 ft)
|
Professional, intelligent |
IVS (Perimeter Protection) |
Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG
(only supported by the sub stream)
|
Smart Codec |
Smart H.265+/Smart H.264+ |
Video Frame Rate |
Main stream:
3840 × 2160 @(1–20 fps by default)
3840 × 2160 @(1–25/30 fps with AI function disabled)
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
third stream:1280 × 1080 @ (1–25/30 fps)
|
Stream Capability |
3 streams |
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240)
|
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
Day/Night |
Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control |
Auto/Manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Image Rotation |
0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
PCM, G.711a, G.711Mu, G726 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing) |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
User/Host |
20 (Total bandwidth: 80 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
IOS; Android |
Certification |
Certification |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B |
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5mA 3V–5V DC |
Alarm Output |
1 channel out: 300mA 12V DC |
Power |
Power Supply |
12V DC/PoE (802.3af) |
Power Consumption |
Basic power consumption: 3.1W (DC12V); 3.5W (POE)Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.8W (DC12V); 8.2W (POE) |
Environment |
Operating Conditions |
–40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
Storage Conditions |
–40°C to +60°C (–40°F to +140°F) |
Protection Grade |
IP67 |
Structure |
Casing |
Metal |
Dimensions |
?122.0 mm × 110.9 mm (4.8" × 4.4") |
Net Weight |
754 g (1.7 lb) |
Gross Weight |
915 g (2.0 lb) |
Videos
Sample 8MP Videos from a similar Dahua camera
