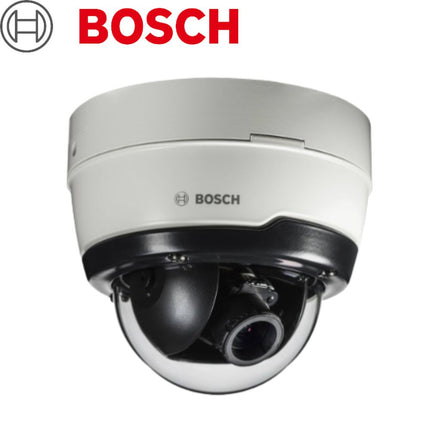

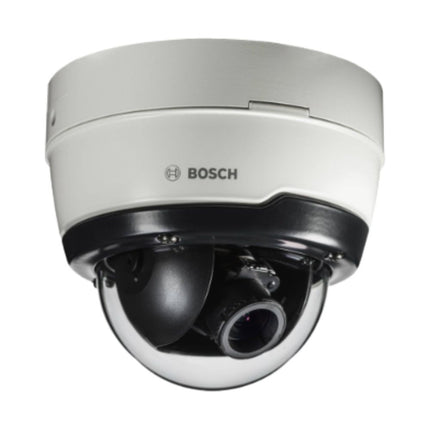

Bosch 2MP Outdoor Starlight 5000i Camera, H.265, WDR, EVA, HDR, IP66, 3-10mm - BOS-NDE-5502-A

Description

Description

Features

  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • Built-in essential video analytics to trigger relevant alerts and quickly retrieve data
  • High dynamic range to see every detail in both bright and dark areas of the scene
  • Starlight camera technology with excellent low-light performance
Datasheet
Tech Specs

Bosch 2MP Outdoor Starlight 5000i Camera, H.265, WDR, EVA, HDR, IP66, 3-10mm - BOS-NDE-5502-A

Power
Input voltage +12 VDC ±5%, 24 VAC ±10% or
Power-over-Ethernet (48 VDC nominal)
Power consumption
(DC)		 7.15 W max.
Power consumption
(AC)		 6.15 W max.
Power consumption
(PoE)		 7 W max.
PoE IEEE standard IEEE 802.3af (802.3at Type 1)
Power level: Class 3
Power (IR version)
Input voltage +12 VDC ±5%, 24 VAC ±10% or
Power-over-Ethernet (48 VDC nominal)
Power consumption
(DC)		 10.8 W max.
Power consumption
(AC)		 8.75 W max.
Power consumption
(PoE)		 9.2 W max.
PoE IEEE standard IEEE 802.3af (802.3at Type 1)
Power level: Class 3
Platform
Common product
platform		 CPP7.3
Sensor
Sensor type 1/2.8‑inch CMOS
Effective pixels 1920 (H) x 1080 (V); 2MP (approx.)
Video performance - Sensitivity
Sensitivity - (3100K, reflectivity 89%, 1/25, F1.3, 30IRE)
Color 0.0225 lux
Mono 0.0051 lux
With IR 0.0 lx
Video performance - Dynamic range
High Dynamic Range 146 dB WDR
Measured according
to IEC 62676 Part 5		 107 dB WDR
Video streaming
Video compression H.265; H.264; M- JPEG
Streaming Multiple configurable streams in H.264 or H.
265 and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Camera processing
latency		 <120 ms (max. average at 1080p60)
GOP structure IP, IBP, IBBP
Encoding interval 1 to 50 [60] fps
Encoding regions Up to 8 areas with encoder quality settings per
area
Video resolution (H x V)
1080p HD 1920 × 1080
Upright mode 1080p 1080 × 1920
1.3 MP (16:9) 1536 × 864
Upright mode 1.3 MP
(16:9)		 864 × 1536
720p 1280 × 720
Upright mode 720p 720 × 1280
480p SD 640 × 480
SD 768 × 432
D1 720 × 480
Video functions
Day/Night Color, Monochrome, Auto (adjustable switch
points)
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium vapor, Dominant color),
Manual mode and Hold mode
Shutter Automatic Electronic Shutter (AES);
Fixed (1/25[30] to 1/15000) selectable;
Default shutter
Backlight
compensation		 On/off/Intelligent Auto Exposure (IAE)
Contrast
enhancement		 On/off
Signal-to-noise ratio
(SNR)		 >55 dB
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Sharpness Sharpness enhancement level selectable
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Privacy Masking Eight independent areas, fully programmable
Video Analysis Essential Video Analytics
Scene modes Standard, Sodium lighting, Fast movement,
Sensitivity boost, Dynamic backlight, Vibrant,
Color only, Sports & gaming, Retail
Other functions Image mirror, Image flip, Pixel counter, Video
watermarking, Display stamping, Location
Camera rotation Automatic detection with manual override
(0° / 90°/ 180°/ 270°)
Video content analysis
Analysis type Essential Video Analytics
Features Rule based alarms and tracking
Line crossing
Enter /leave field
Follow route
Loitering
Idle / removed object
People counting
Crowd density estimation
3D tracking
Audio detection (if microphone used)
Calibration /
Geolocation		 Automatic based on gyro / accelerometer data
and camera height
Tamper detection Maskable
Audio detection Detection of audio to generate an alarm
Night vision (IR version only)
Distance 45 m (148 ft)
LED 10 LED high efficiency array, 850 nm
IR intensity Adjustable
Optical
Lens type 3 to 10 mm Automatic Varifocal (AVF) lens, IR
corrected
DC Iris F1.3 - 360
Lens mount Board mounted
Adjustment Motorized zoom/focus
Iris control Automatic iris control
Day/Night Switched mechanical IR filter
Horizontal field of
view		 37° - 106°
Vertical field of view 21° - 55°
Input/output
Analog video out SMB connector, CVBS (PAL/NTSC), 1 Vpp,
75 Ohm, approx. 500 TVL
Audio line in 0.707 Vrms max, 10 kOhm typical
Audio line out 0.707 Vrms at 16 Ohm typical
Alarm input 1 input
Alarm input
activation		 Short or DC 5V activation
Alarm output 1 output
Alarm output voltage 30 VDC, max. load 0.5 A
Ethernet RJ45
Audio streaming
Standard 5 s pre-alarm recording
Signal-to-Noise Ratio Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (A memory card of Class 6
or higher is recommended for HD recording)
Audio Streaming Continuous recording, ring recording. alarm/
events/schedule recording
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (A memory card of Class 6
or higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Encryption TLS1.0/1.2, AES128, AES256
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G;
GB/T 28181
Mechanical
3-axis adjustment
(pan/tilt/rotation)		 350º / 130º / 350º
Dimensions (Ø x H) 145 x 131 mm (5.71x 5.14 in)
Weight 1102 g (2.43 lb)
Color RAL 9003, RAL 9017
Housing material Aluminum
Dome bubble Polycarbonate, clear with anti-scratch coating
Environmental
Operating
temperature		 40 ºC to +50 ºC (-40 ºF to +122 ºF) for
continuous operation;
-34 ºC to +74 ºC (-30 ºF to +165 ºF)
according to NEMA TS 2-2003 (R2008),
para 2.1.5.1 using fig. 2.1 test profile
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Operating humidity 5% to 93% RH non condensing
5% to 100% RH condensing
Ingress protection IP66 and NEMA 4X
Impact protection IK10

Read more

Bosch 2MP Outdoor Starlight 5000i Camera, H.265, WDR, EVA, HDR, IP66, 3-10mm - BOS-NDE-5502-A

Product form

SKU: BOS-NDE-5502-A

$1,154.93 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
