Description

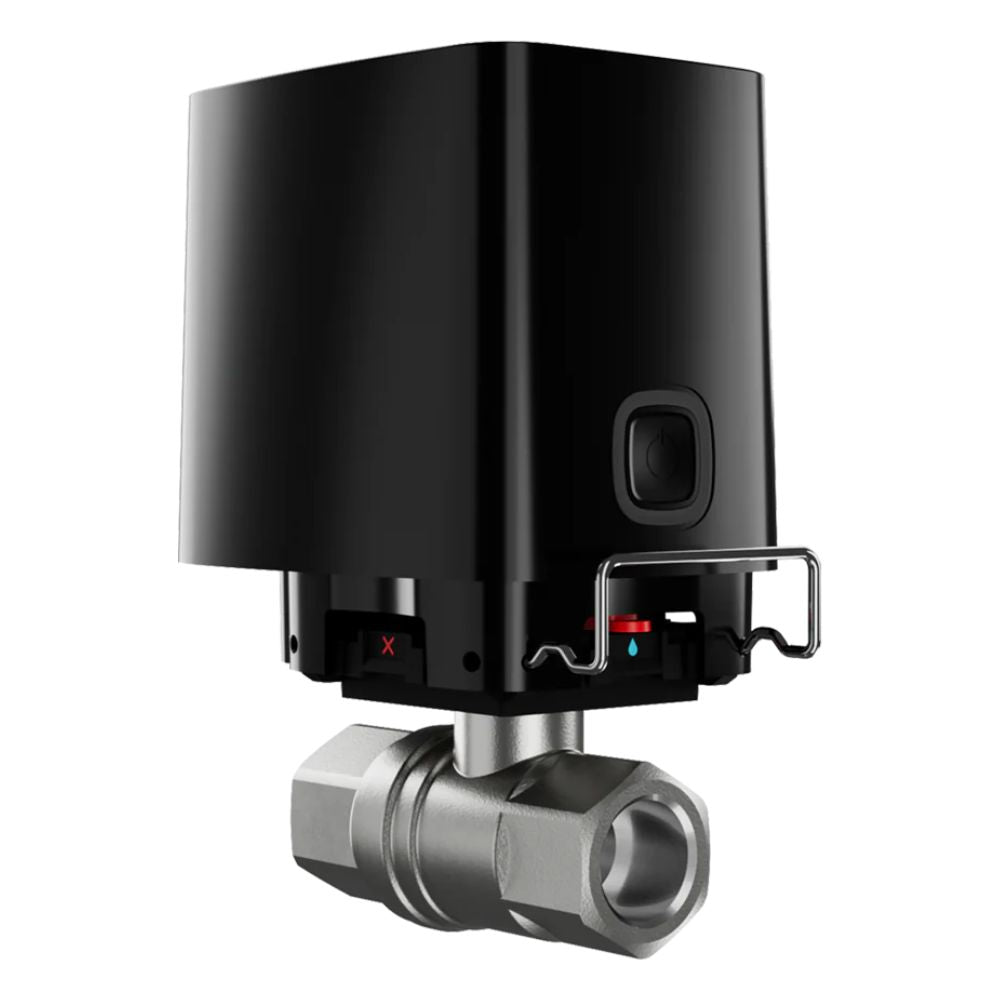

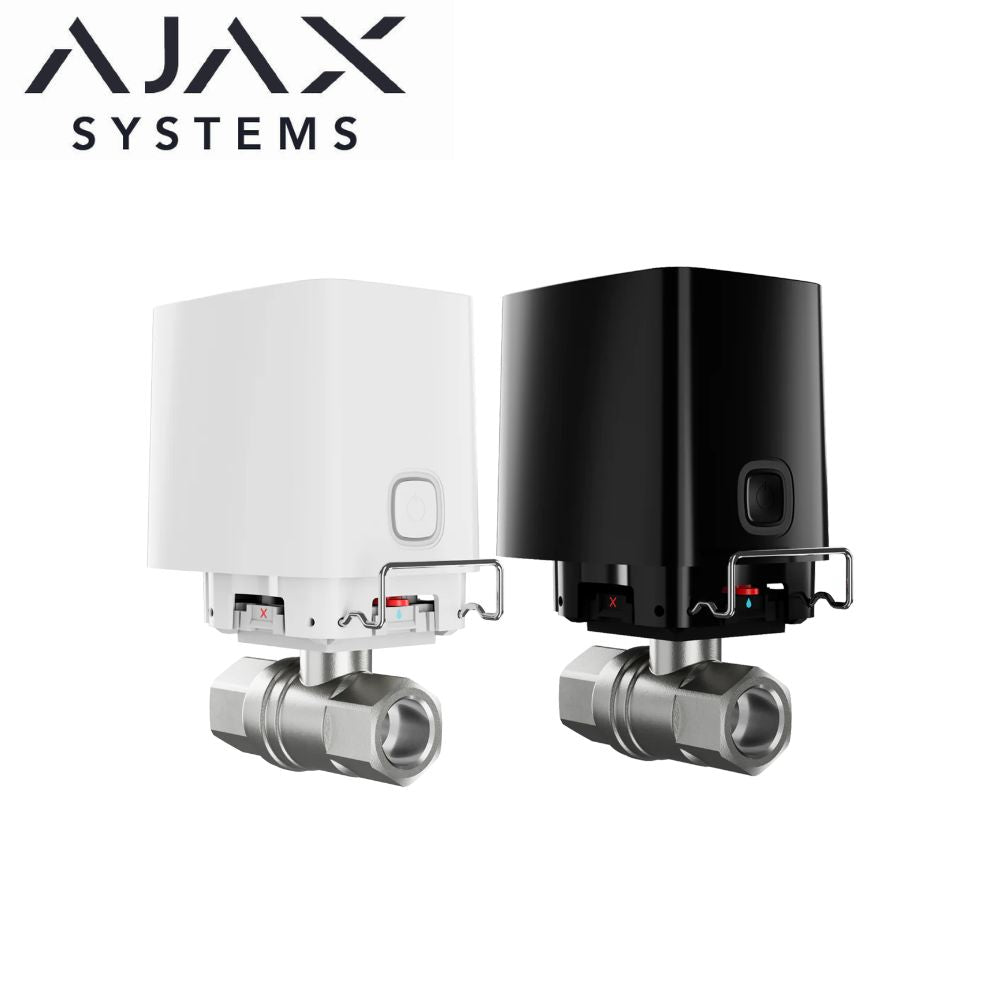

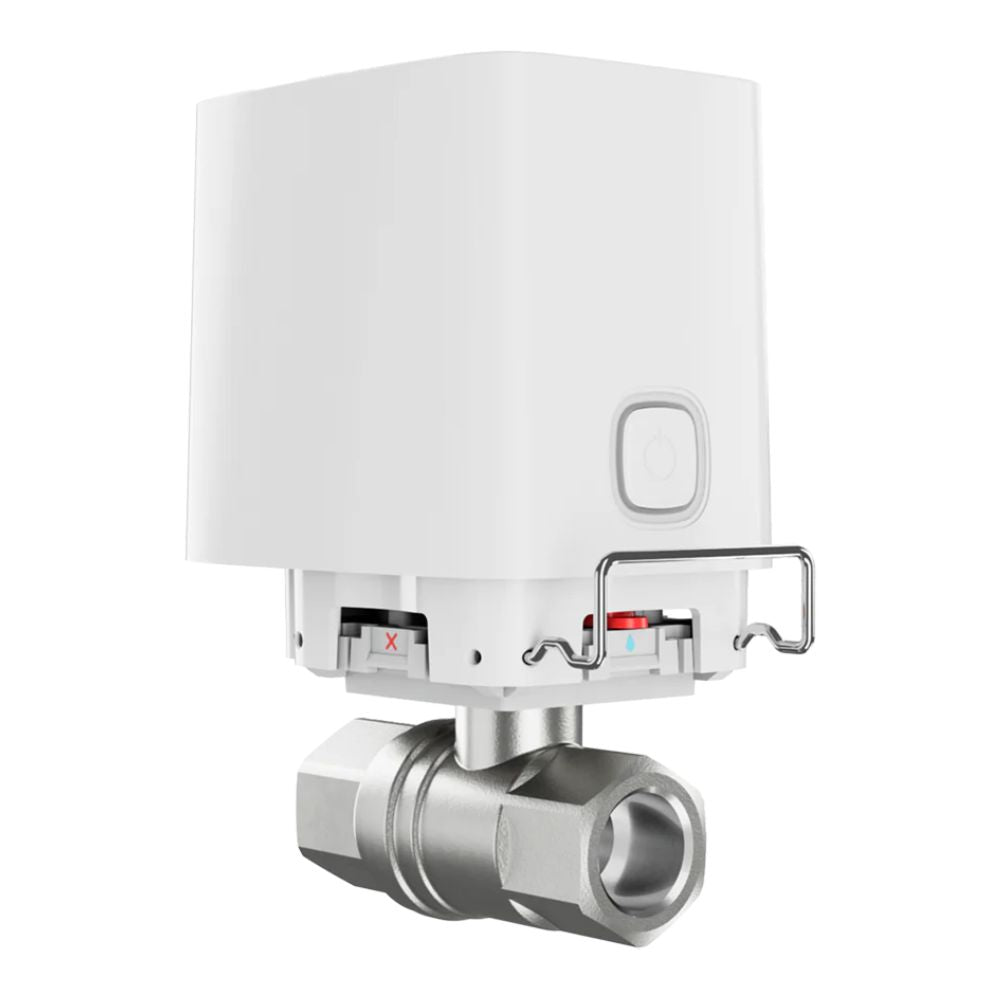

WaterStop Jeweller is a smart water shutoff valve. Operates as part of an automated water leak prevention system. Controls it in Ajax apps, through a button on the enclosure, a lever on a shutoff valve, as well as automation scenarios.
WaterStop communicates with the hub using an encrypted Jeweller radio protocol. The communication range without obstacles is up to 1,100 meters.
Runs on pre-installed batteries for up to three years. It can also be powered by a third-party power supply unit with 7.5–14 V⎓ and operating current of at least 1.8 A.
Features
- Water shut-off in 5 seconds
- Protected on every level
- One-stop solid brassware
- Installation without any construction involved
- Stable performance for years
- Unique wireless technologies
- Scaled and comprehensive
- All data at a glance
- Full monitoring for the building
- Advanced automation for greater safety
- Sabotage-resistant
Complete Set
- WaterStop Jeweller.
- CR123A batteries (pre-installed) — 4 pcs.
- DN15 (½”), DN20 (¾”), or DN25 (1″) RuB shutoff valve (depends on the selected kit).
- Two mounting lockers: standard (pre-installed) and anti-sabotage.
- Sealing nut.
- Quick start guide.
More info about WaterStop on Ajax website: https://ajax.systems/products/waterstop/
Download
Video
Tech specs
| Compatibility |
| Hubs |
Hub Plus
Hub 2 (2G)
Hub 2 (4G)
Hub 2 Plus
Hub Hybrid (2G)
Hub Hybrid (4G) |
| Radio signal range extenders |
ReX
ReX 2 |
| Communication |
Jeweller communication technology
Proprietary wireless technology for events transmission.
Features:
Two-way communication.
Protection against device spoofing.
Block encryption featuring a floating key.
Instant notifications.
Remote configuration via Ajax apps.
|
| Radio frequency bands |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
|
| Maximum effective radiated power (ERP) |
up to 20 mW
Automatic power adjustment to reduce power consumption and the effect of radio interference.
|
| Radio signal modulation |
GFSK |
| Radio communication range |
up to 1,100 m
Between device and hub (or radio signal range extender) without obstacles.
Calculate the radio signal range at the object
|
| Radio signal encryption |
Block encryption with a floating key protects all the data stored and transmitted. |
| Frequency hopping |
Prevents radio interference and jamming. |
| Operating components |
| Shutoff valve |
½" (DN 15), ¾" (DN 20), or 1" (DN 25) RuB valve included in complete set. |
| Electric actuator |
Opens or closes the valve. |
| Mounting platform |
To install an electric actuator on a shutoff valve. |
| Mounting lockers |
To fix an electric actuator on a shutoff valve.
The complete set includes two options:
standard (pre-installed)
anti-sabotage
|
| Water shut-off (shutoff valve) |
| Fields of application |
water supply and heating systems |
| Operating fluid |
hot and cold water, non-aggressive liquids |
| Material |
brass |
| Connection type and thread |
BSP parallel (EN 10226-1, ISO 228), female-to-female threads
Thread size:
½" (DN 15, 15 mm)
¾" (DN 20, 20 mm)
1" (DN 25, 25 mm)
|
| Operating liquid temperature range |
from –20 °C to +170 °C
Freezing of the fluid in the pipeline may severely damage the valve and electric actuator.
|
| Mounting platform |
to mount an electric actuator on a shutoff valve
Complies with the ISO 5211 standard.
|
| Lever on mounting platform |
To manually shut off the water supply without tools in case of emergencies. |
