Description

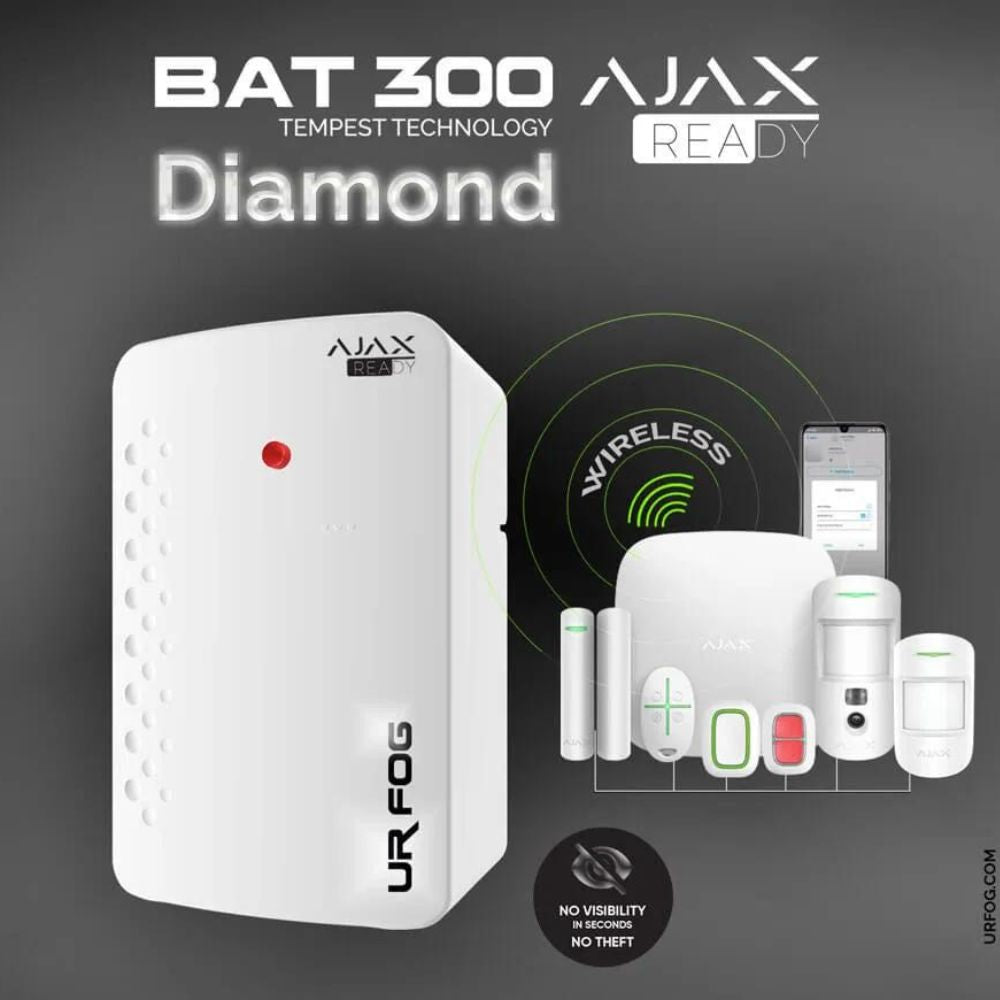

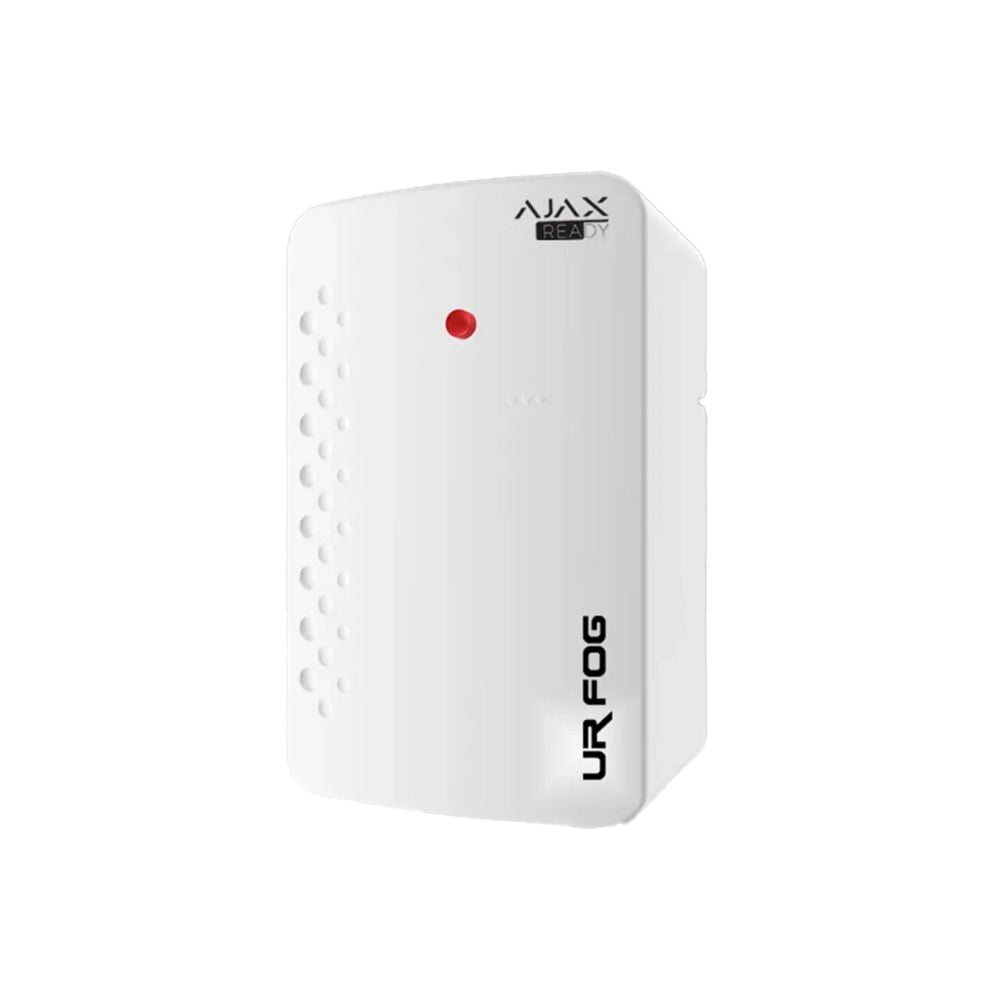

UR FOG BAT 300 Tempest Technology operates with very different principles compared to all existing product. It is a
battery operated device able to remain in working condition for many months without mains power while still being able to
shoot for the maximum settable time. With healthy and fully charged batteries it can remain operational without recharging
for more than 6 months. At 6 months it is able to perform a full shot of 60 seconds.
UR FOG BAT 300 Tempest Technology can shoot a maximum of 100 m3 of fog with zero visibility (UR FOG standard).
BAT 300 Ajax READY - INCLUDES:
- 2 X RELAY Ajax
- 1 x POWER SUPPLY
- 1 x 24/12 ADAPTER CABLE
More info about these products on Ajax website:
Downloads
Video
Tech Specs
| Physical features |
| Dimensions (height x width x depth) mm |
300 x 200 x 150 |
| Weight included batteries (Kg) |
7,6 |
| Weight without batteries (Kg) |
1,9 |
| Color |
Pure white RAL 9010 |
| Electrical features |
| Power supply |
Battery |
| Battery model |
N. 2 custom built lead acid VRLA 12 V - 9 Ah batteries |
| Autonomy without external power supply |
About 6 months (at 6 months a full time shoot is guaranteed) |
| Autonomy with external power supply |
*No limit. Battery replacement recommended every 2 years |
| Inbuilt battery charger |
Yes with two external charging current options: 10-16 V / 350 mA and 1 A |
| External battery charger |
Yes optional |
| Average power consumption |
Low power mode: 2-3 mW - Always on mode: 1,2 W |
| Heating time from cold |
Immediate at the time of shot |
| Temperature management |
Self-balancing of shot with patented system |
| Technical features |
| Proprietary technology |
Yes, covered by 2 international patents |
| Compatible with any alarm system |
Yes |
| OEM (Original Equipment Manufacturer) version |
Available |
| Mounting positions |
Vertical (wall/shelf) |
| Opearating temperature range |
-10°C ..... +50°C |
| Inputs |
3 wired inputs Arming, Shooting and PIR / Panic |
| Outputs |
3 wired outputs (max 16 V - 50 mA):
empty fluid, fault, low battery |
| Serial ports |
2 Serial interfaces RS232 with UR FOG Standard protocol
for expansions |
| Microswitch tamper for cover |
Optional |
| External signaling LEDs |
3: Red Fault - Green Ready - Blue Armed |
| Signaling buzzer |
Yes |
| LAN/WiFi board |
LAN/WiFi board |
| Registration on Active CLoud |
Yes |
| Multi-hole and directional nozzles |
No |
| Nozzle extension |
No |
| Performance |
- Performance (m3) visibility 1 meter(Standard EN 50131-8:2019)
- 100 m3 with zero visibility(UR FOG standard) in 60 seconds
- Number of shots with one cartridge
25 m3 (8 shots) - 50 m3 (4 shots)
- 100 m3 (2 shots)
+ 1 extra test shot
- Shot times (sec)
2 (test shot) - 15 (25m3)
- 30 (50m3) - 60 (100m3)
|
| Accessories and refills |
- BAT 300 (Fluid refill and 2 battery included)
- Battery
- Fluid refill
- Active Cloud lan/wifi board with cables
- (wifi opt.)
- Wifi antenna module
- 24V - 12V adapter cable (Active Cloud, etc.)
- External fast charger
- 220V power supply
- Silicone nozzle protection
- Orientable wall bracket
|
