Description

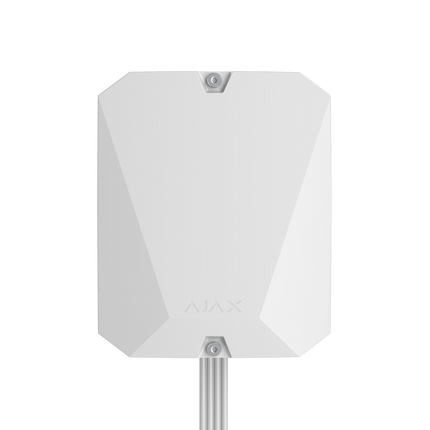

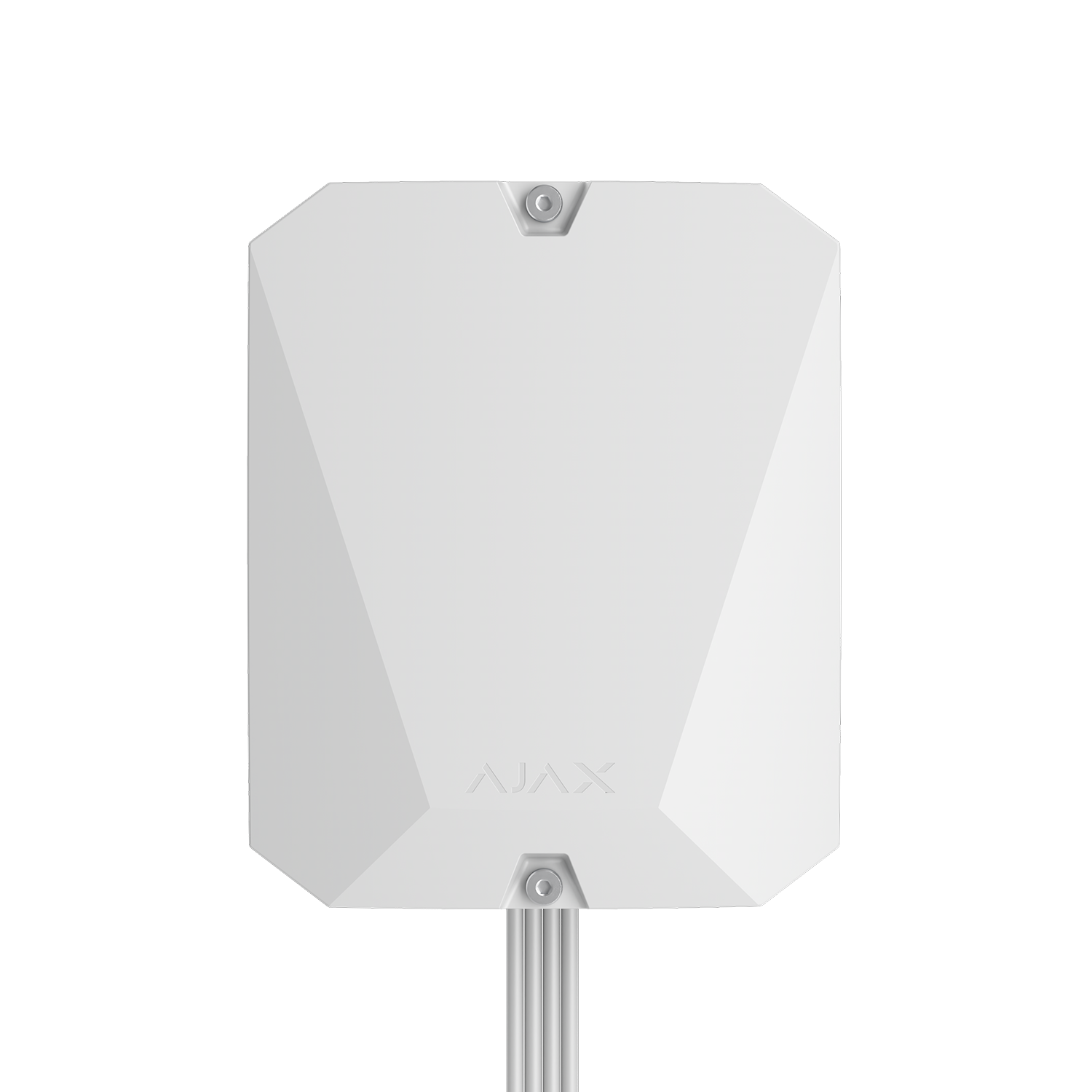

MultiTransmitter Fibra is an integration module connecting third-party wired devices to an Ajax security system. It has 18 zones for connecting NC, NO, EOL, 2EOL, and 3EOL devices.
MultiTransmitter Fibra is equipped with two tampers for protection against dismantling. The device is powered from the 100–240 V~ mains, and can also be powered from the 12 V⎓ backup battery. It can supply 10.5–15 V⎓ power to connected devices.
More info about MultiTransmitter on Ajax website: https://ajax.systems/products/multitransmitter/
Download
Video
Tech Specs
MultiTransmitter
Compliance with
standards |
EN 50131 (Grade 3)
PD 6662:2017
INCERT
|
Communication with control panel |
Fibra communication
technology
Communication range
up to 2,000 m with U/UTP
cat.5 cable, 4×2×0,51
Polling interval
12–300 s
Protection against
spoofing
MultiTransmitter Fibra
|
Compatibility |
Hubs
Hub Hybrid (2G)
Hub Hybrid (4G)
Range Extenders
no
|
Installation |
Operating temperature
range
from –10°С to +40°С
Operating humidity
up to 75%
Protection class
IP40
|
Connected devices |
Number of zones
18
Connection types
NC, NO, EOL, 2EOL, 3EOL
EOL Resistance
from 1k to 15k for each resistor, up to 30 k of total resistance
Set automatically in PRO apps
Operating modes
pulse, bistable
Set by PRO or user with
admin rights
Types of events
intrusion, fire, auxiliary
alarm, panic button, gas
alarm, tamper alarm,
malfunction, leakage, glass
break, high temperature,
low temperature, masking,
duress code (opening),
vibration (seismic sensor),
custom
Set by PRO or user with
admin rights
Cable length between
devices and
MultiTransmitter Fibra
up to 400 m
When using a signal cable
with a 0.22 mm2 copper-
clad aluminium conductor
Power supply for
connected devices
4 power outputs: 10.5–15
V⎓, up to 1 A in total
One power output for a fire
detector, and three outputs
for other devices
|
Anti-sabotage protection |
Tamper alarm
Two tampers to detect the MultiTransmitter casing opening and alert about detachment from the wall.
Protection against spoofing
with the integration module authentication
Communication loss detection
within 36 seconds
Between a hub or range extender and MultiTransmitter. The detection time depends on the Jeweller or Jeweller/Fibra settings.
Instant detection of wired connection loss, short circuits, and malfunctions
when using EOL/2EOL/3EOL connection type
Depends on the connection type.
|
Power supply |
Main power supply
100–240 V~, 50/60 Hz
Backup power supply
12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
The backup battery is not included in the set.
|
Casing |
Colour
white, black
Dimensions
196 × 238 × 100 mm
Weight
798 g
Tamper alarm
Two tampers to detect the
lid opening and alert of
detachment a module from
the wall
O
|
Colours |

|
Complete set |
MultiTransmitter Fibra
Casing
Power cable
Screw terminal block
Adapter*
12 V⎓ battery connection
cable
Installation kit
Quick Start Guide
|
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
