Description

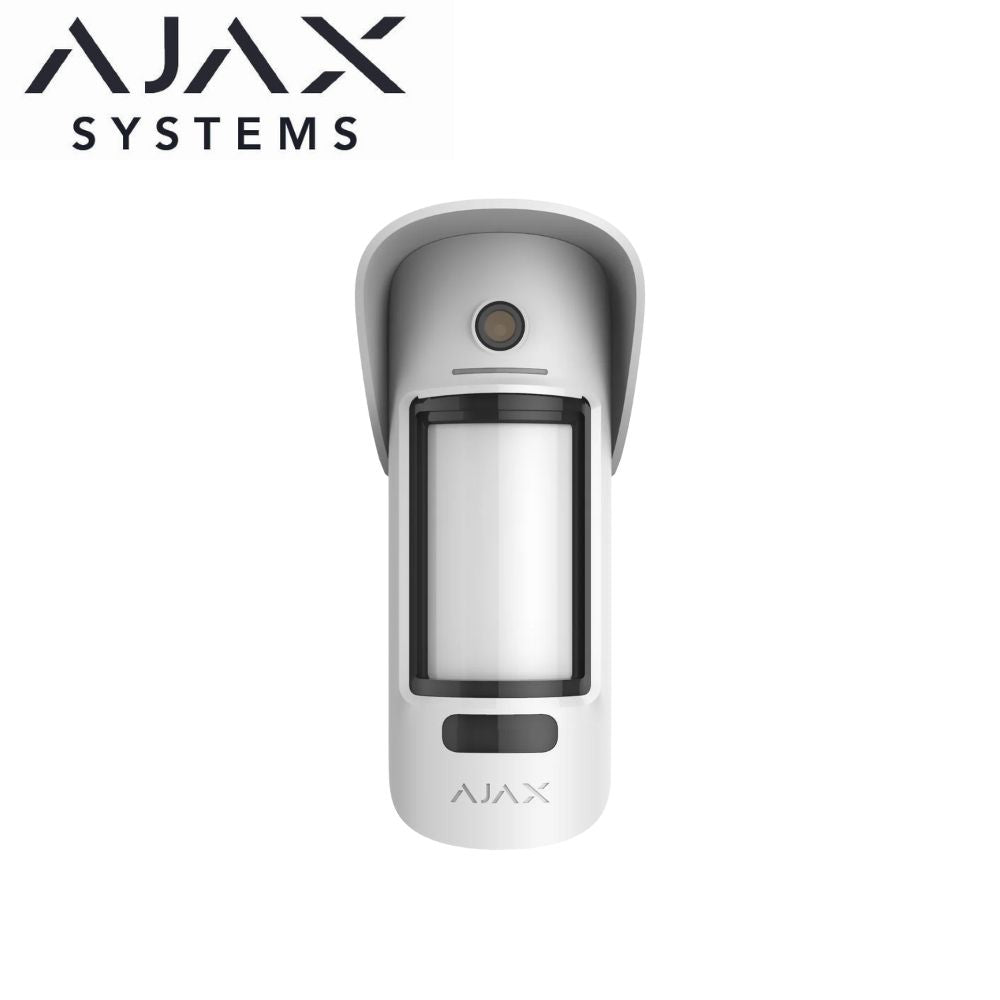

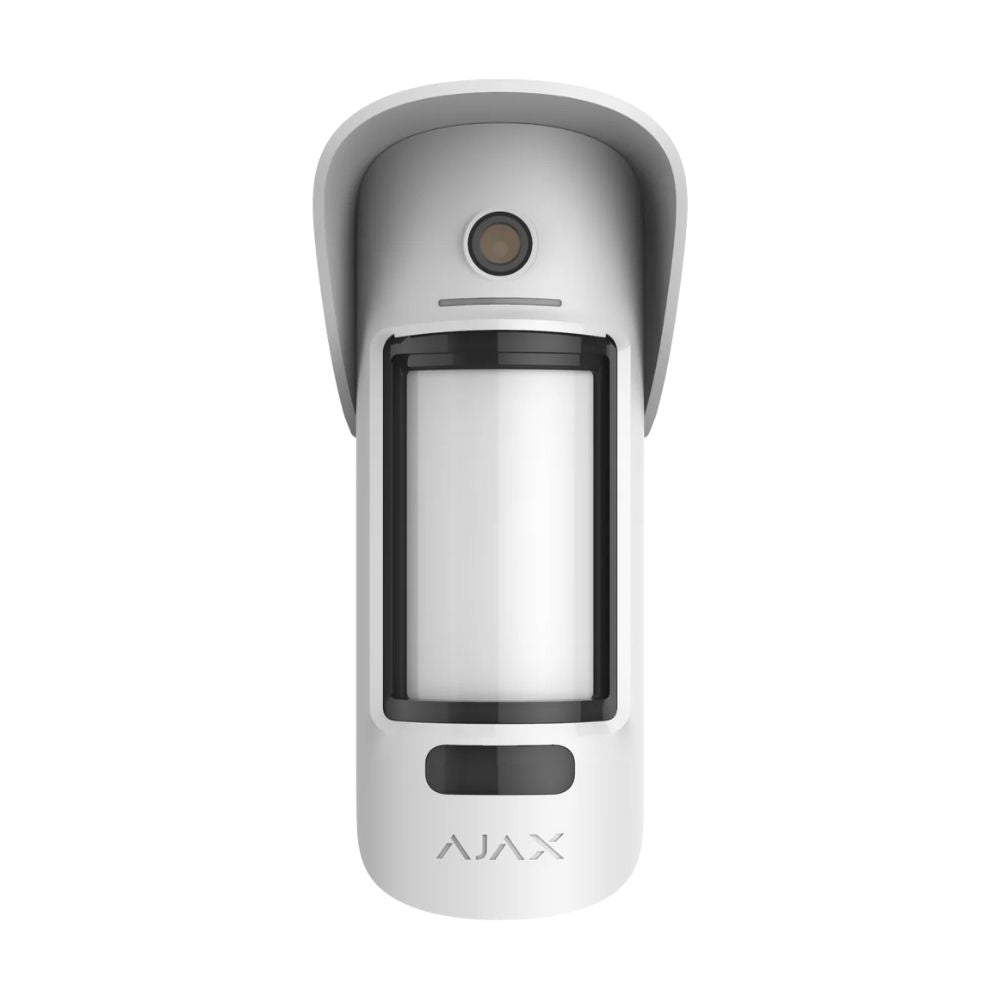

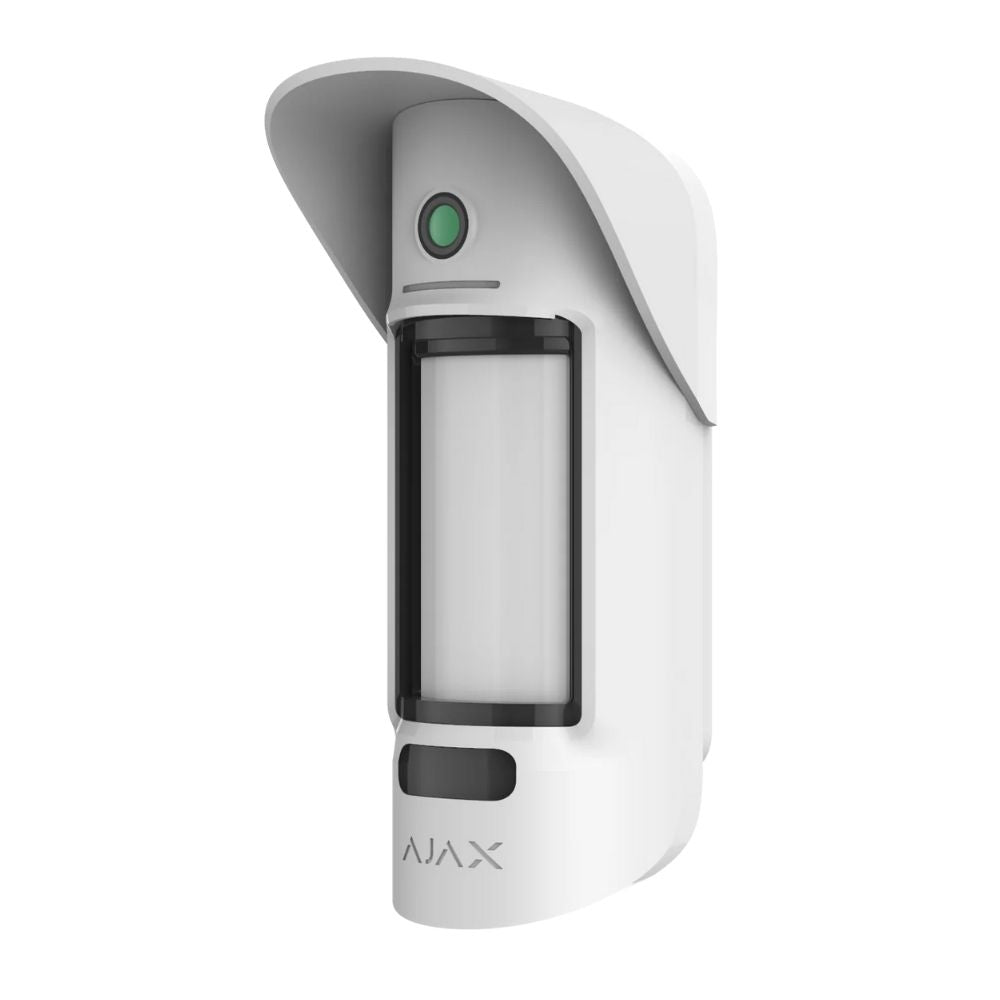

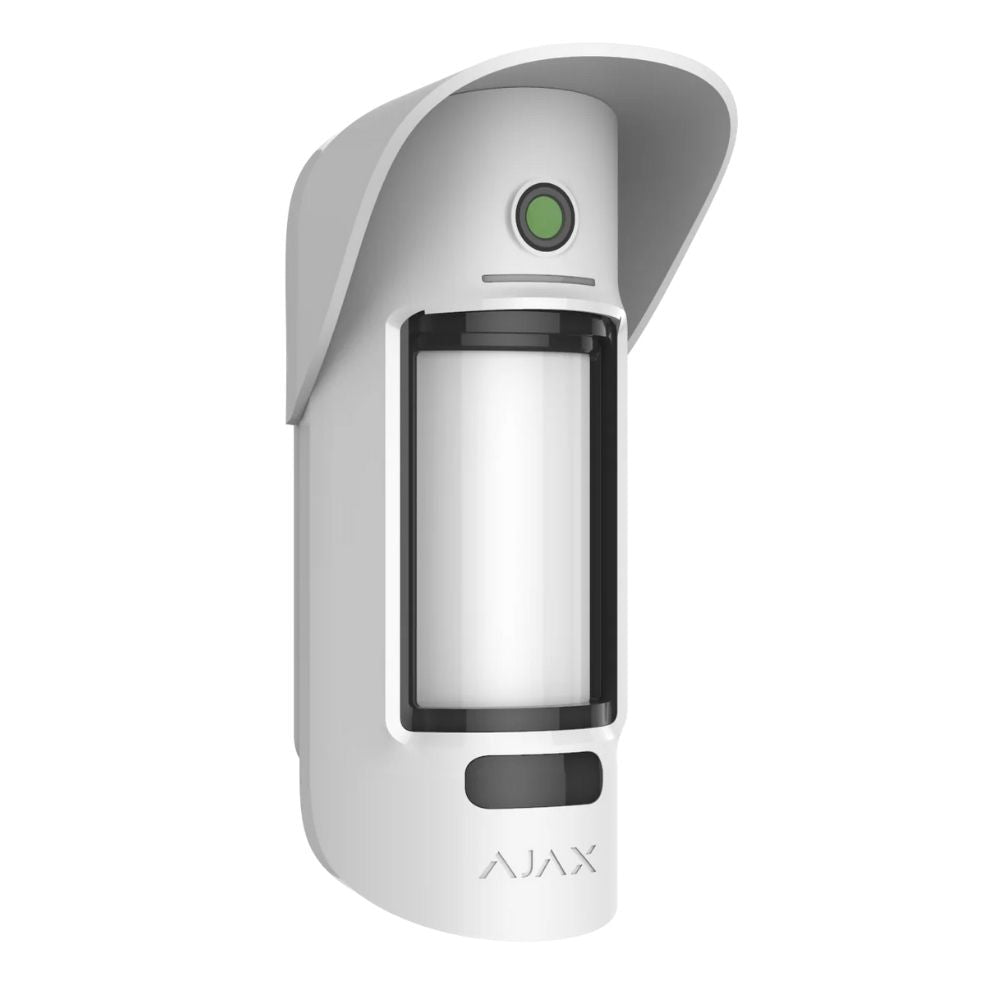

MotionCam Outdoor (PhOD) Jeweller is a wireless IR motion detector for indoor and outdoor use supporting Photo by Alarm, Photo on Demand, Photo by Scenario, and Photo by Schedule features.
It has an adjustable range of motion detection up to 15 meters. The device detects attempts to block the view thanks to the anti-masking system. The detector does not react to animals up to 80 cm tall when installed and configured correctly.
Features
- 3-15 meters detection zone
- Hub communication range up to 1,700 meters
- Two-way communication
- Frequency hopping
- Effective detection in heat and cold
- IR backlight for taking photos in the dark
- Digital algorithm for filtering false alarms
- Intelligent false alarm filter
- Pet Immunity up to 80 cm tall
- Two IR Sensors
- Don't miss a thing (Camera)
- IP56
- Photo Verification
- Remote Control and set-up
- Effortless Installation
- Up to 3 years of battery life
Complete Set
- MotionCam Outdoor (PhOD) Jeweller

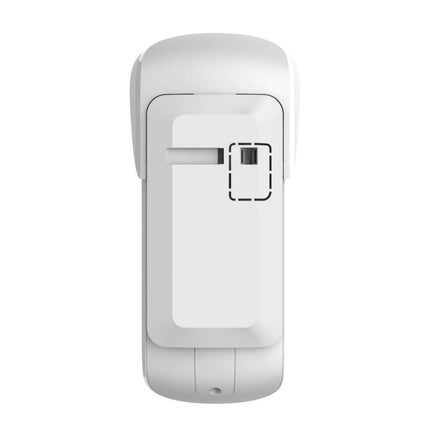

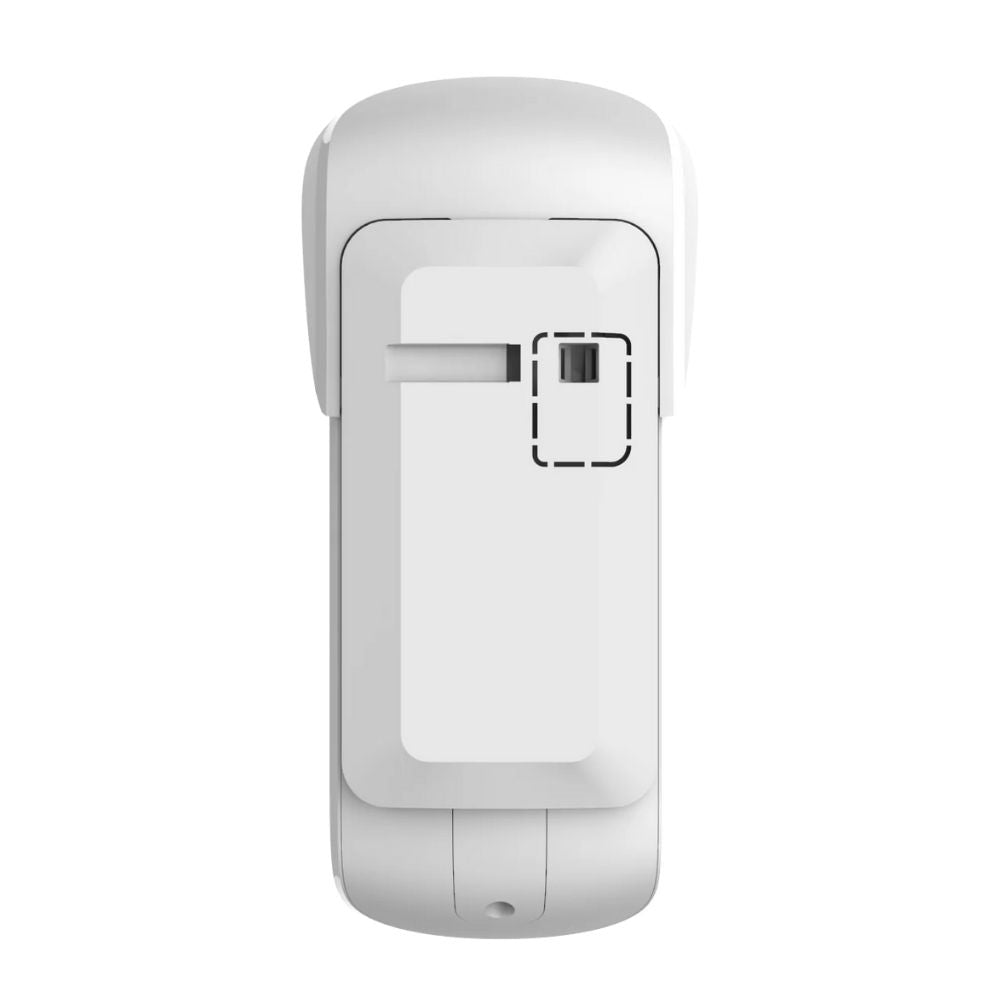

- SmartBracket mounting panel
- Hood visor
- 4 × CR123A batteries (pre-installed)
- Installation kit
- Quick Start Guide
More info about MotionCam Outdoor (PhOD) on Ajax website: https://ajax.systems/products/motioncam-outdoor-phod/
Download
Video
Tech specs
| Compatibility |
Compatible hub models
Compatible range extenders
|
| Sensing element |
Two IR sensors |
| Sensitivity |
Adjustable, 3 levels |
| Motion detection distance |
3 to 15 meters when installed at 0.8–1.3 meters (set by user)
1 to 13 meters when installed at 0.5 meters (set by user)
|
| Horizontal viewing angle of the detector |
90° |
| Motion detection speed |
From 0.3 to 2.0 m/s |
| Pet immunity option |
Yes. When installed at 0.8–1.3 meters and set up correctly, the detector ignores animals up to 80 centimetres tall
Learn more
|
| Camera angle |
- Horizontal — 105°
- Vertical — 50°
|
| TV distortion (EBU standard) |
Barrel — 17% |
| Sending photo in case of alarm |
Photo resolution:
- 320 × 176 pixels (default)
- 640 × 352 pixels
Shooting series of up to 5 photos
Learn more
|
| Infrared backlight for shooting in the dark |
Yes |
| CMS compatibility |
Motion alarms are transmitted to CMSs that support SIA (DC-09), ADEMCO 685, SurGuard (Contact ID), and other proprietary protocols.
CMS software with support for photo-verification of alarms
|
| Radio communication protocols with Ajax detectors and devices |
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
|
Pet immunity |
weight: not relevant
height: up to 80 cm Learn more |
| Maximum radio signal strength |
≤ 20 mW |
| Radio signal modulation |
GFSK |
| TDMA |
+ |
| Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
| Ping interval |
From 12 to 300 seconds |
| Power supply |
4 × CR123A battery |
| Battery life |
Up to 3 years (up to 2.5 years with Entry Delay setting enabled)
Calculate the battery life
|
| Protection class |
IP56 |
| Operating temperature range |
From –25°C to +60°C |
| Operating humidity |
Up to 95% |
| Dimensions |
206 × 108 × 93 mm |
| Weight |
470 g |
| Service life |
10 years |
| Warranty |
24 months
Learn more
|
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
