Description

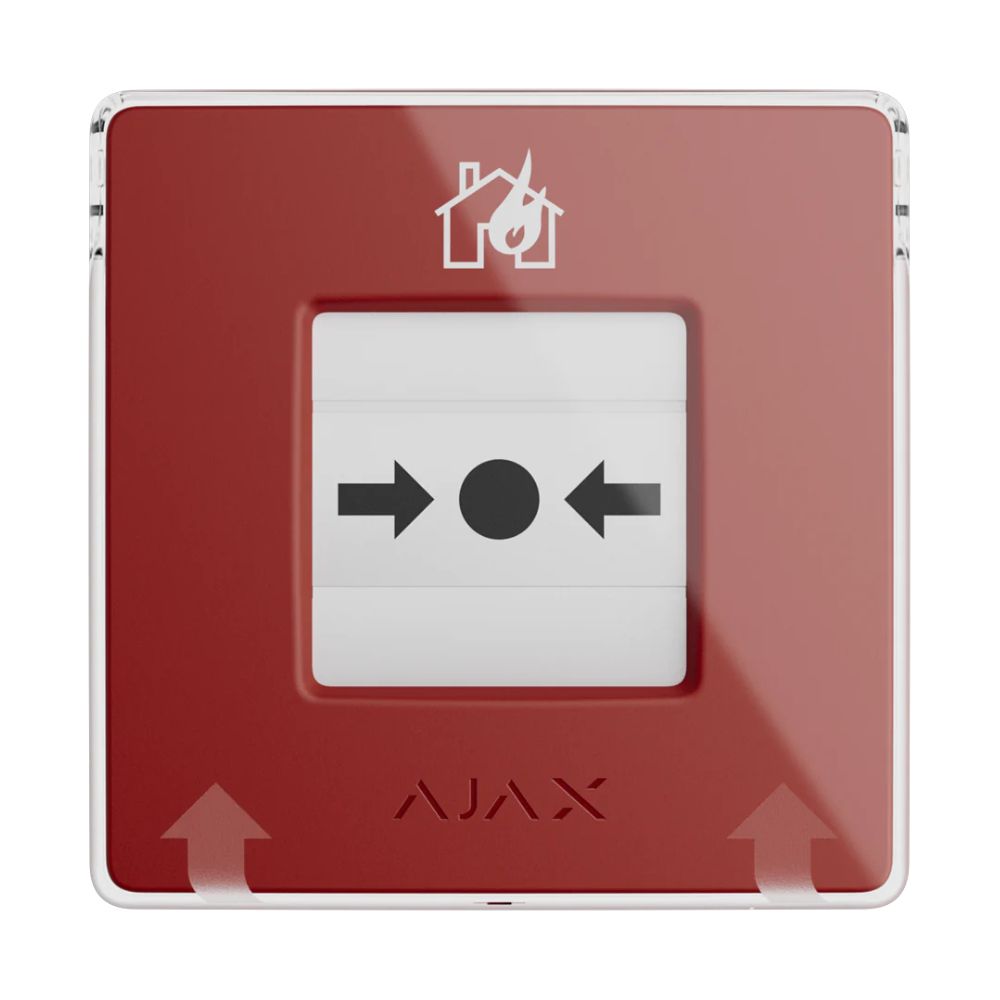

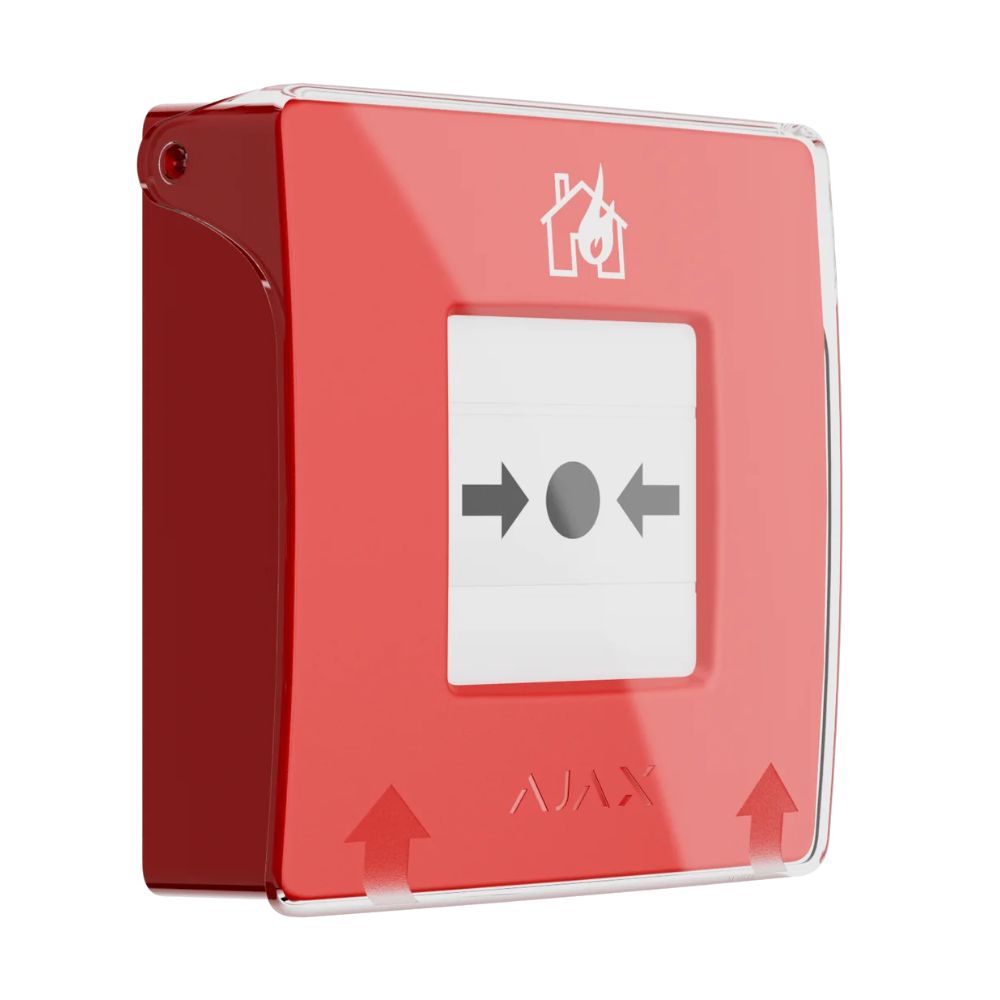

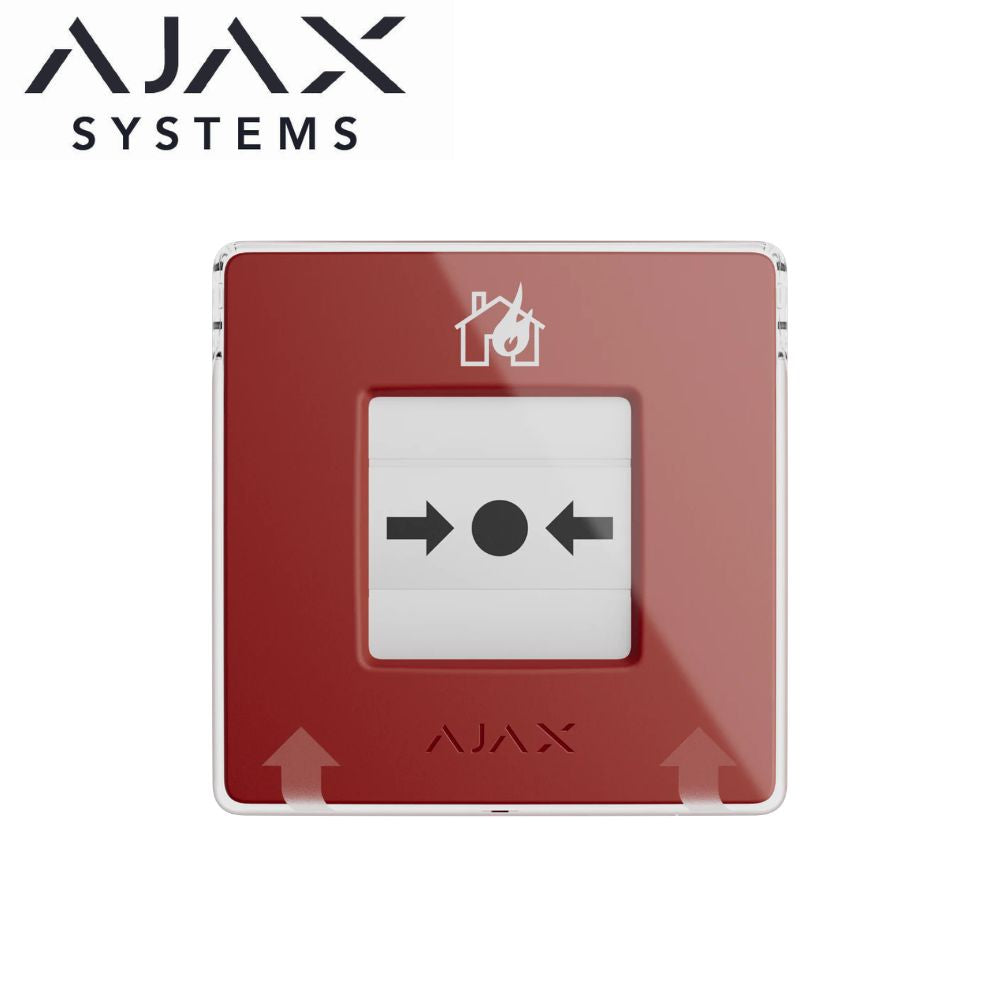

ManualCallPoint (Red) Jeweller is a fast and straightforward way for anyone to activate the fire alarm. Pressing the button triggers the built-in sirens of all fire detectors in the system and informs the users. Meanwhile, the central monitoring station (CMS) receives the alarm and calls emergency services. All the data is instantly available in Ajax apps: which device was triggered, when, and where. In a life-endangering situation, Ajax innovative features follow an alarm in seconds: automation scenarios de-energize the facility, turn the emergency lights, and unlock the exits.
Features
- Fire detector's sirens activation
- Resilient Button Mechanism
- Alarm delivery to CMS
- Informative in-app notifications
- Transparent front lid to prevent accidental alarm
- Smartbracket with lock
- Up to 7 years of battery life
Complete Set
- ManualCallPoint (Red) Jeweller
- SmartBracket mounting panel

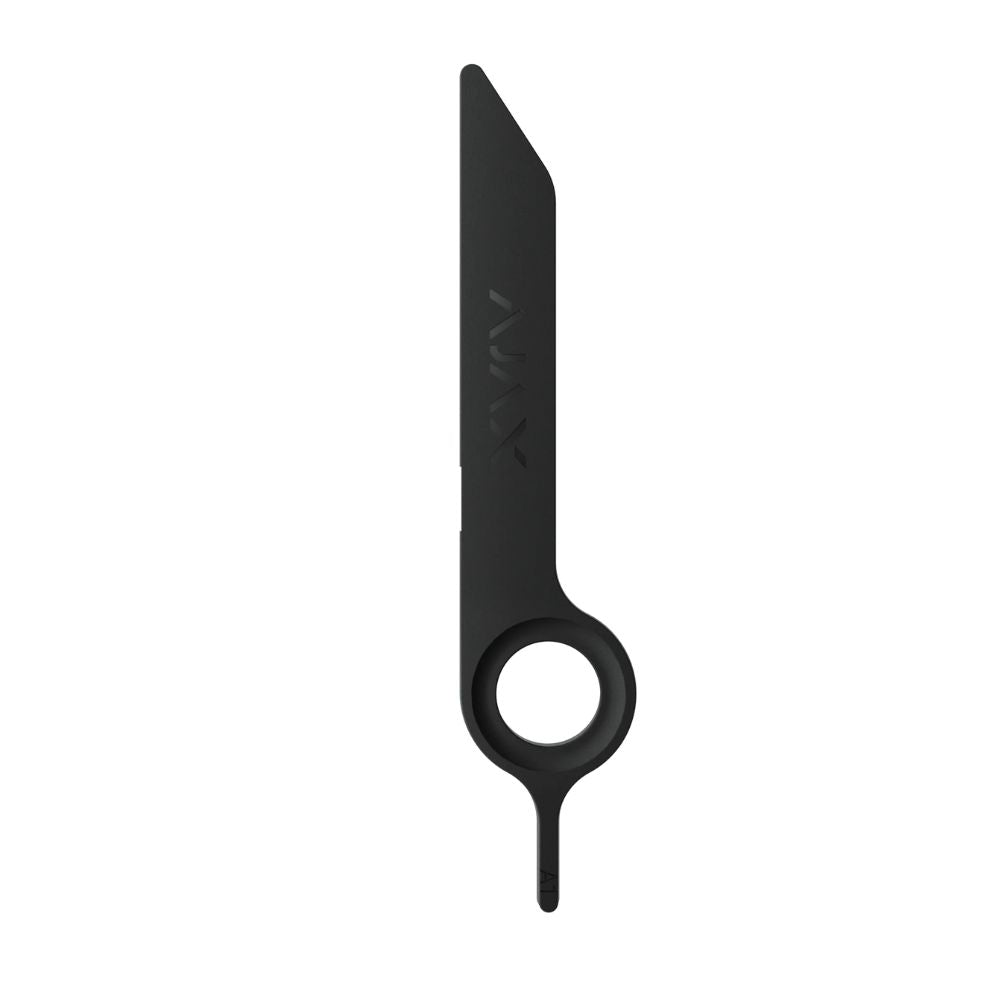

- Special tool (key)
- 2 × CR123A battery (pre-installed)
- Installation kit
- Quick start guide
More info about HomeSiren on Ajax website: https://ajax.systems/products/manualcallpoint-red-jeweller/
Download
Video
Tech specs
| Type of notification |
Audible alarm and LED |
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders |
Maximum RF output power |
Up to 25 mW |
Radio signal modulation |
GFSK |
Radio signal range |
Up to 1,700 m (any obstacles absent) |
Battery supply |
2 × CR123A, 3 V |
Battery life |
Up to 7 years |
| Installation method |
Indoors |
Operating temperature range |
from 0 °C to +50 °C |
Operating humidity |
up to 80% |
Overall dimensions |
102 × 104 × 39 mm |
Weight |
214 g |
Service life |
10 years |
| Special Tool |
Button Reset
Hole in the Enclosure
Convenient Dismantling
|
