Description

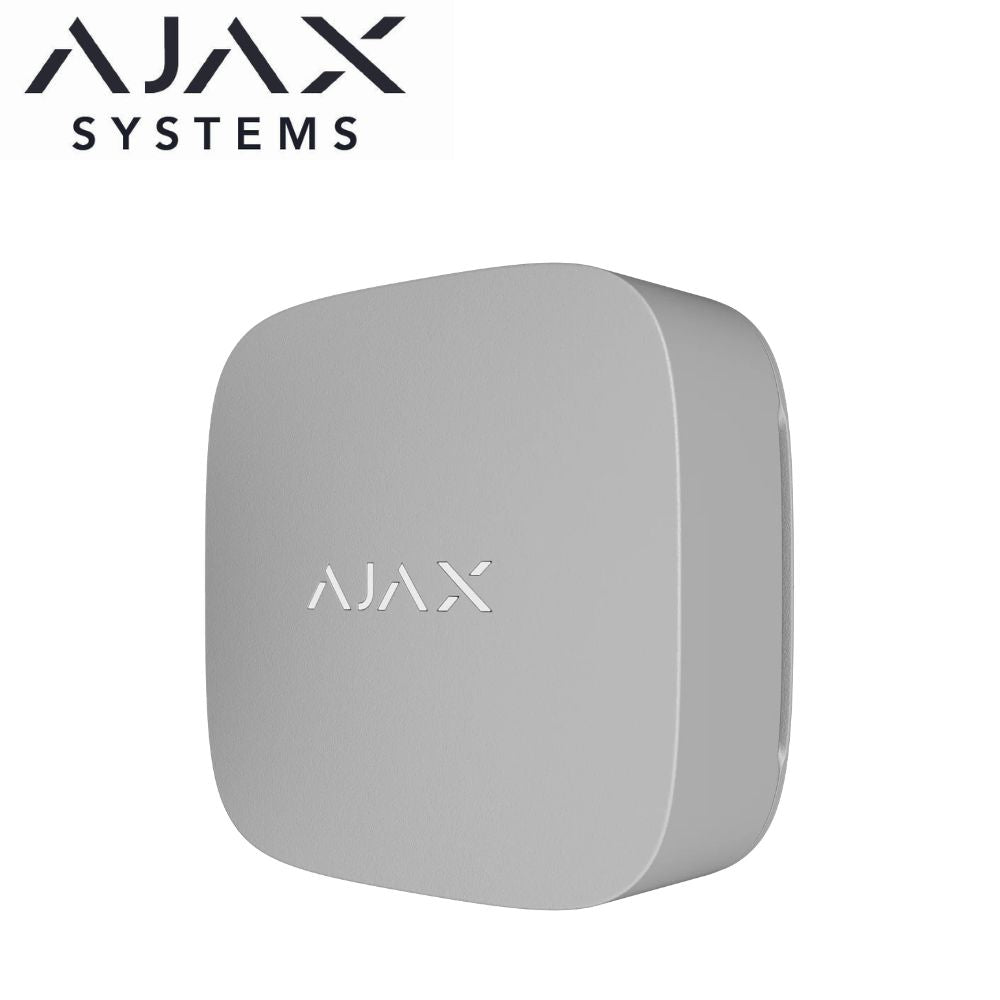

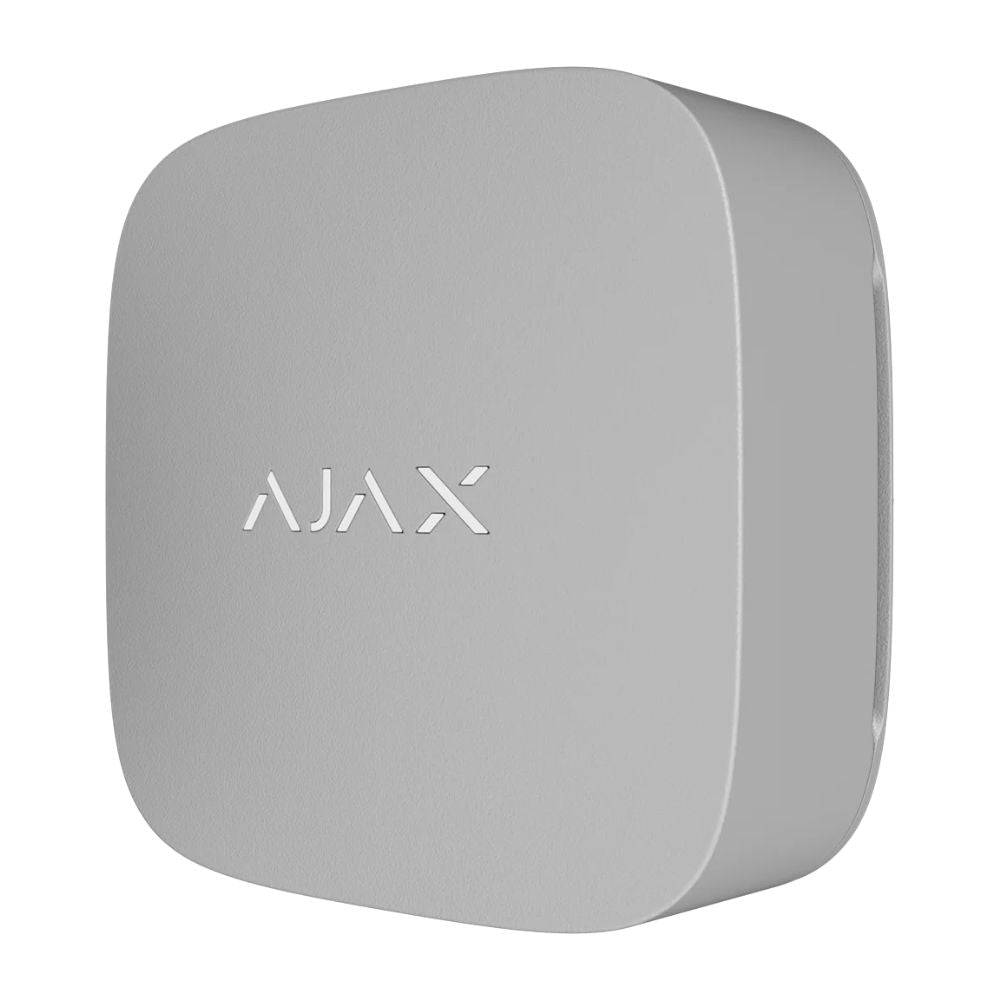

LifeQuality Jeweller is a wireless air quality detector. Measures temperature, humidity, and CO2 (carbon dioxide) concentration in the room. Reports air pollution using an LED indicator and notifications in Ajax apps, enables automation scenarios.
LifeQuality operates as part of the Ajax system, communicating with the hub over two secure radio protocols: Jeweller and Wings: the detector uses Jeweller to transmit measurements, while Wings transmits data backups. The hub communication range is up to 1,700 meters without obstacles.
Features
- Non-dispersive infrared sensor for precise CO2 measurement
- Monitors carbon dioxide, temperature and humidity
- In-app charts and history
- LED indication of air quality
- Built-in accelerometer
- Automation scenarios
- In-app notifications
- Up to 1700 m
- Remote control and configuration
- Up to 2,5 years
Complete Set
- LifeQuality Jeweller
- SmartBracket mounting panel
- 2 × CR123A battery (pre-installed)
- Installation kit
- Quick start guide
More info about LifeQuality on Ajax website: https://ajax.systems/products/lifequality/
Download
Video
Tech specs
| Compatibility |
Hub 2(2G), Hub 2(4G), Hub 2 Plus and ReX 2 |
| Installation method |
Indoors |
| Power |
2 x Pre-installer CR123A batteries |
| Maximum effective radiated power (ERP) |
≤ 20mW |
| Communication range |
Up to 1 700m in an open space |
| Operating temperature range |
From 0°C to +50°C |
| Operating humidity |
Up to 85% |
| Product dimensions |
77mm x 77mm x 34.5mm |
| Product weight |
127g |
| Packaging dimensions |
130mm x 130mm x 60mm |
| Mass of unit packed |
200g |
| Warranty |
24 months limited Manufacturer's warranty. Batteries are not covered under warranty |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
